Heavy Construction Equipment Bulldozer Types and Uses

What are the types and uses of heavy construction equipment bulldozer? Bulldozers are large machines that are used to push, dig, excavate, and level materials such as soil and waste at construction sites. In the front, they have big, heavy blades that push material. Some include extra features, like as rippers at the back to help break up rough terrain.

There are three main types of bulldozers.

Depending on your job, there are a variety of bulldozer kinds to pick from. When choosing a bulldozer, take into account the terrain you’ll be working on, the type of project you’ll be working on, and other things. The correct machine is also critical for your project’s productivity and safety.

We’ll go through the different varieties of bulldozers and their important features.

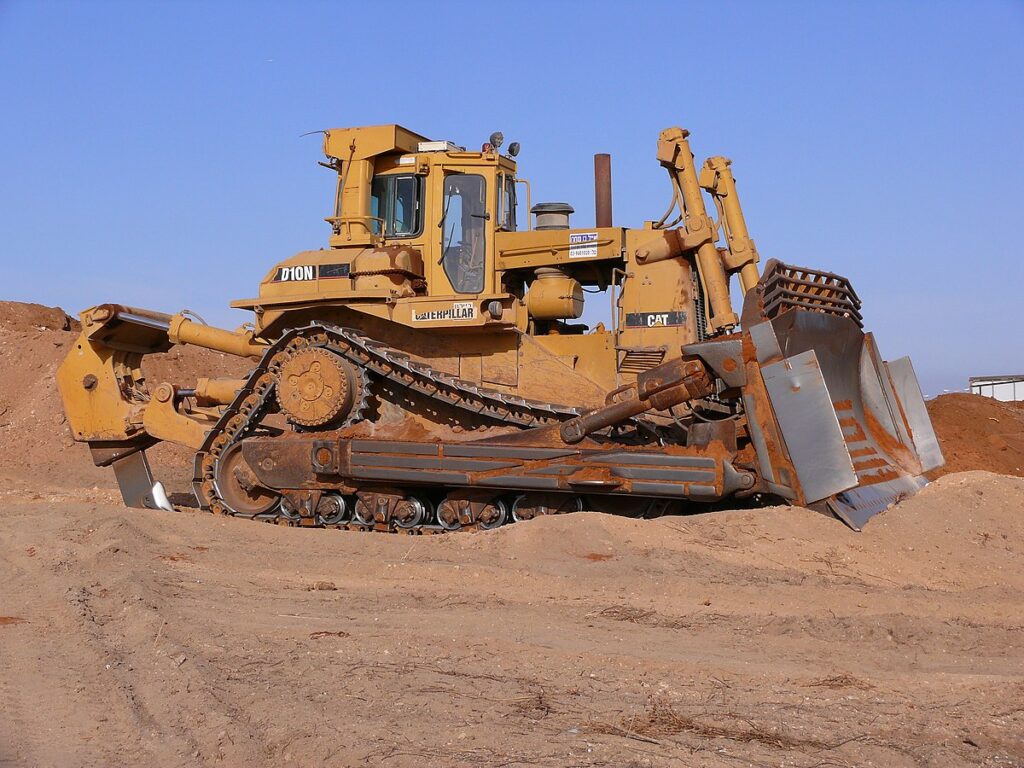

Crawler Bulldozer

A crawler is also known as a track bulldozer and resembles a tractor in appearance. This heavyweight is ideal for transporting bulky items from one location to another. The tracks on this bulldozer provide excellent traction, making it suitable for crossing dense and varied terrain. Rippers on larger crawlers help with crushing and clearing dense terrain.

Wheel Bulldozer

This machine is larger than a crawler and is sometimes referred to as a tire bulldozer. Because its tires provide greater overall handling, a wheel dozer is more maneuverable than a crawler. It also includes hydraulic steering that is fully articulated and moves on a smaller axis. Because the tires are gentler than tracks, this machine is also perfect for soft or delicate ground.

Mini Bulldozer

A compact bulldozer is another name for this smaller bulldozer. A tiny dozer is ideal for operations that necessitate greater movement and versatility than larger equipment. A compact bulldozer can perform well in a variety of operations that involve grading and clearing lots because to its tiny size.

Bulldozer Blades

The blades used on the bulldozers listed above can be further categorised. Varied blades have different functions, can handle various materials, and can bear a variety of load weights. The most prevalent varieties are mentioned below.

Straight Blades (S-Blade)

The shortest blade a dozer may utilize is an S-blade, which does not have side wings. In the bottom back corners of the blade, this blade connects to the arm. The straight blade is suitable for fine-grained and medium- to hard-density materials because to its form. The disadvantage is that the dozer’s lifting and carrying capabilities are limited due to its straight design. Stumping, back-filling, grading, and evening soil are just a few of the activities that s-blades excel at.

Universal Blade (U-Blade)

A U-blade is good for moving items across long areas of land because it has broad side wings and a curved design. When in motion, the wings restrict the material from spilling over. They attach to the bottom back corners of the blade in the same way that S-Blades do. It’s the tallest and widest blade kind, and it works well with mild to medium-density soil. Ditching, hauling, pushing, and crowning are some of the best uses for u-blades.

S-U (Semi-U) Blade

This blade combines the best qualities of the S- and U-blades to provide greater penetration and versatility. In comparison to a standard U-blade, it is narrower, less curved, and has smaller side wings. Because of its shape, it’s great for moving soil over large distances. This blade is attached to the blade utilizing angled stabilizing bracing and one or two hydraulic tilt cylinders in the lower back. It’s great for pushing sand and soil with a soft to medium density. Crowning, moving heavy material, stumping, and ditching are some of the best uses for an s-u blade.

Angle Blade

The center of the bulldozer’s panel is where this blade is attached. Because it can tilt close to 30 degrees left or right, it is ideal for shifting trash to the side. As a result, an angle blade is classified as a two-way blade. Because it lacks side wings, this blade has the potential to spill. It’s ideal for tasks that require soft to medium-hard-density soils, snow, or gravel. Stumping, shaping, stripping, and ditching are some of the best jobs for angle blades.

Power-Angle-Tilt (PAT) Blade

Because of its effortless maneuverability and diverse actions, the PAT blade is one of the most versatile blades. The driver can angle, tilt, and lift the blade in practically any direction from the cabin. These blades, like angle blades, are positioned in the panel’s center. Scraping, land clearing, leveling, backfilling, and grading are just a few of the activities that PAT blades excel at.

Parts and Functions of a Bulldozer

Because of its design, bulldozers can be employed in a variety of terrain. Blades, rippers, and whether or not tires or tracks are utilized are the key features that distinguish dozers.

Rippers

A ripper is a claw-like extended attachment that attaches to the back of the bulldozer. Rippers are used to break up land so that crops can flourish, as well as to break down rock and earth so that it can be moved. Depending on your project requirements, you can discover single-shank and multi-shank rippers.

Final Drive

The final drive on a bulldozer is possibly the most used and replaceable component. Modern final drives spread the weight across numerous gear teeth and raise the drive motor off of the suspension.

Cab

The cab of a bulldozer is an important section of the machine because it is where the operator controls it. Some cabs have distinct features that boost their degree of comfort and safety. While you’re traveling about the job site, check to determine if your cab reduces noise and absorbs impact. Because operators can spend hours at a time inside the cab, these are essential.

Tracks/Tires

The mobility of a bulldozer is strongly influenced by its tracks and tires. Tracks are excellent for navigating difficult, uneven terrain, whilst tires are better for soft ground. If you’re working in a delicate location that you don’t want to damage, you might also want to consider tires.

Engine

Because bulldozers move a lot of heavy objects around the job site, they typically require high-powered engines. Engines come in a variety of shapes and sizes to meet a variety of requirements. To meet with specific EPA rules, some newer engines, for example, create fewer emissions than older engines.

Push Frame

When it comes to arranging materials for various operations, the push frame is vital. The blade is moved by this portion of the bulldozer.

Bulldozer Blades

The blade is the large metal plate at the front of the bulldozer that pushes and digs through materials. As previously said, different types of blades are better suited for different projects.

What to Look for in a Bulldozer

When you buy or hire a bulldozer for your project, you can increase its efficiency if you choose the proper one. When looking into bulldozer kinds for your next job, bear the following in mind:

• Determine what it’s for. Are you attempting to level the ground? Is it possible to push material?
• Examine the work environment. Do you have to navigate in confined areas?
• Take into account the terrain. Is it a hard or a soft surface that you’re working on?
• Determine the different sorts of materials. What kind of soil are you transporting? What is the density of it?

There are various varieties of bulldozers available to meet your hauling, pushing, and leveling demands. Taking the time to analyze your alternatives and becoming familiar with the dozer’s various features will considerably benefit your job site.
